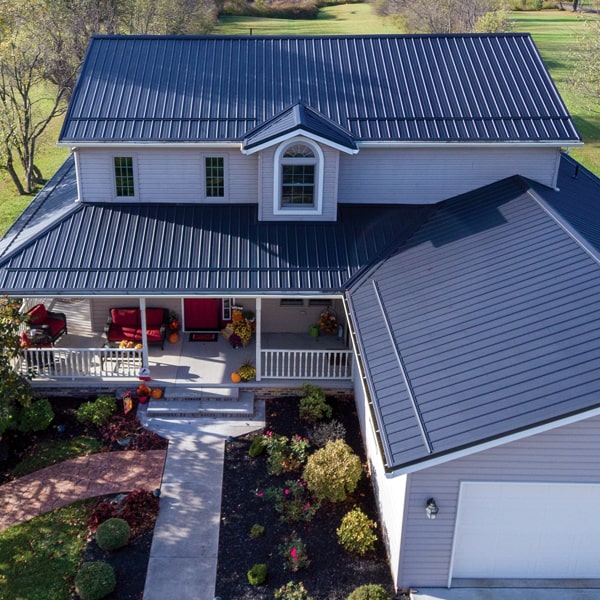

Protect Your Building With Long Lasting Metal Panels
Superior durability with an attractive appearance.
Panel-Loc Plus gives residential, agricultural, and light commercial projects the protection of steel, with an attractive appearance. It features an extra striation on top of the rib to give it superior durability and protection against leaking. Panel-Loc Plus is available in 3 qualities: Standard, Prime, and Ultra.
- Engineered with a Siphon Groove to minimize leaks.
- Wide fastening surface for easy application.
- Unique lap groove hides the overlap, giving a smooth, clean appearance.

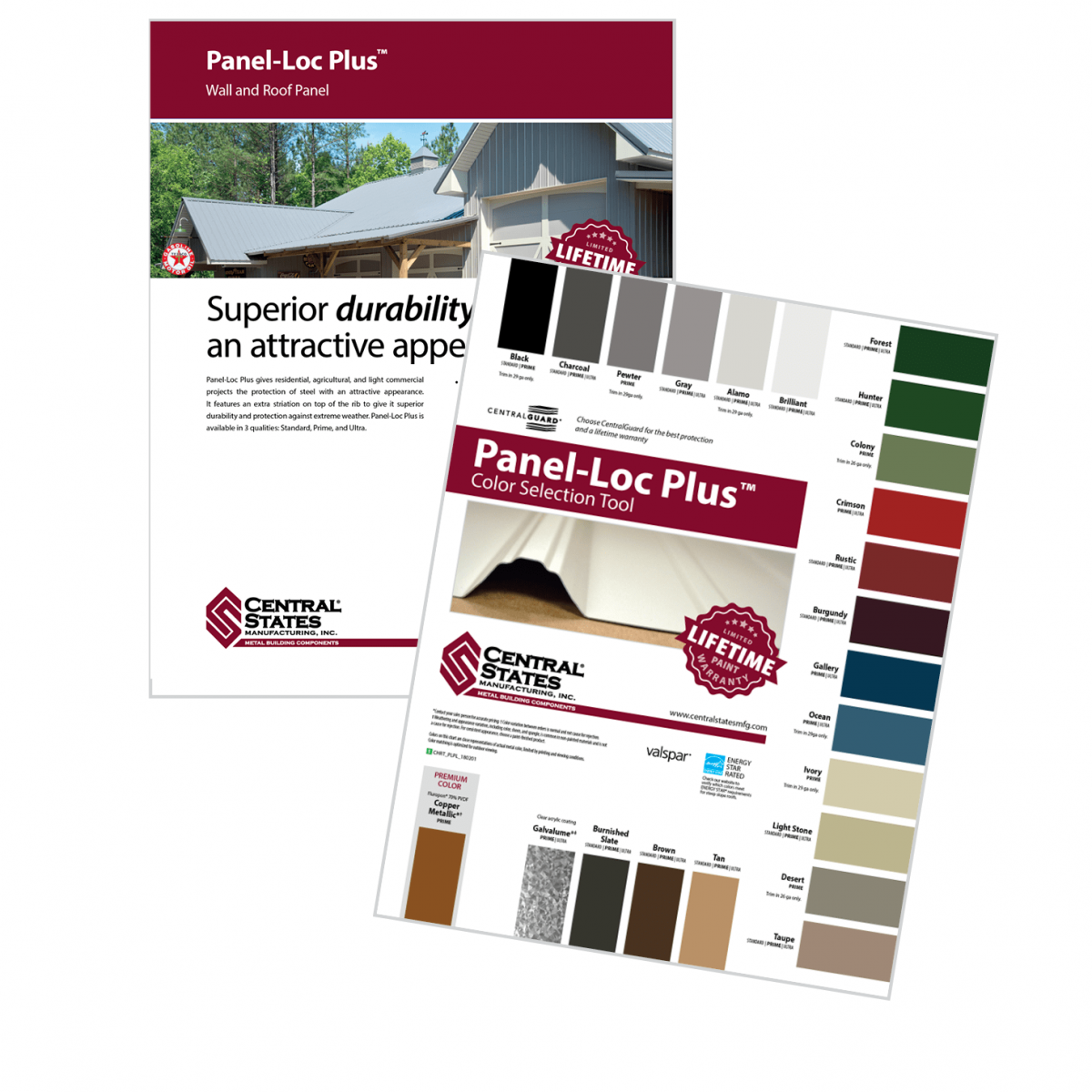

Download Color Brochure

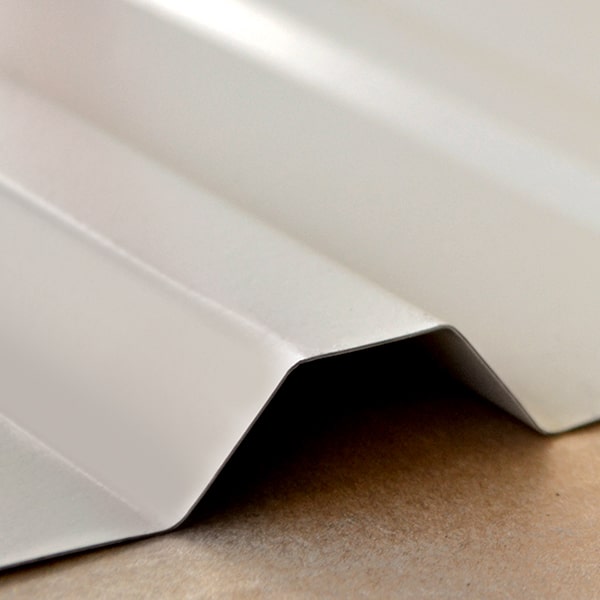

The classic panel for post frame barns and buildings.
Panel-Loc gives agricultural, light commercial and residential roofs the protection of steel with an attractive appearance.
- Drain channel minimizes leaking and guards against wind, rain, and snow.
- Wide fastening surface for easy application.
Hidden fasteners prevent leaks.

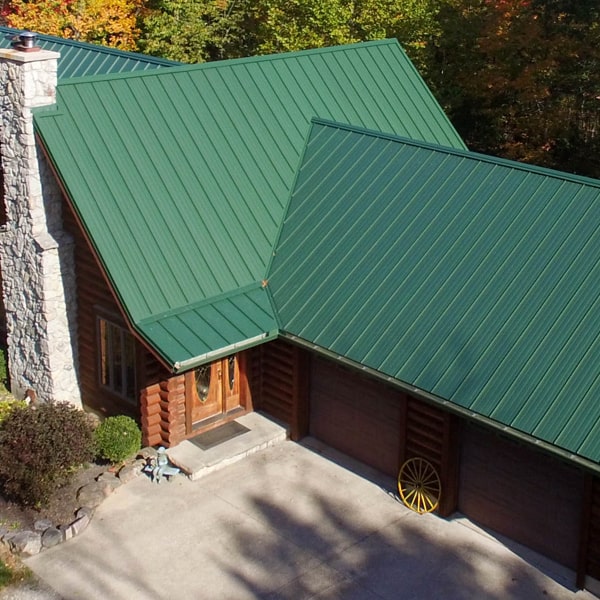

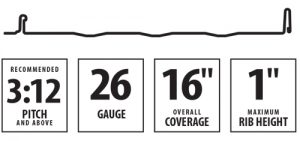

Horizon-Loc allows you to have a beautiful roof without exposed fasteners, giving you the benefits of a standing seam roof for less. The panel uses a snap together system allowing for rapid installation without mechanical seaming, resulting in a less expensive labor cost than traditional standing seam panels. It is ideal for residential roofing and light commercial applications applied over solid decking, and its durability ratings may lower insurance rates to save you money.
- Installs over solid decking with 30lb. felt paper or equivalent.
- Available in painted AZ50 Galvalume or AZ55 acrylic coated Galvalume .
- Matching trims and accessories in both hidden or exposed fastener style.

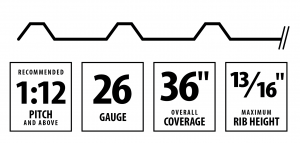

Commercial grade roof and wall panel

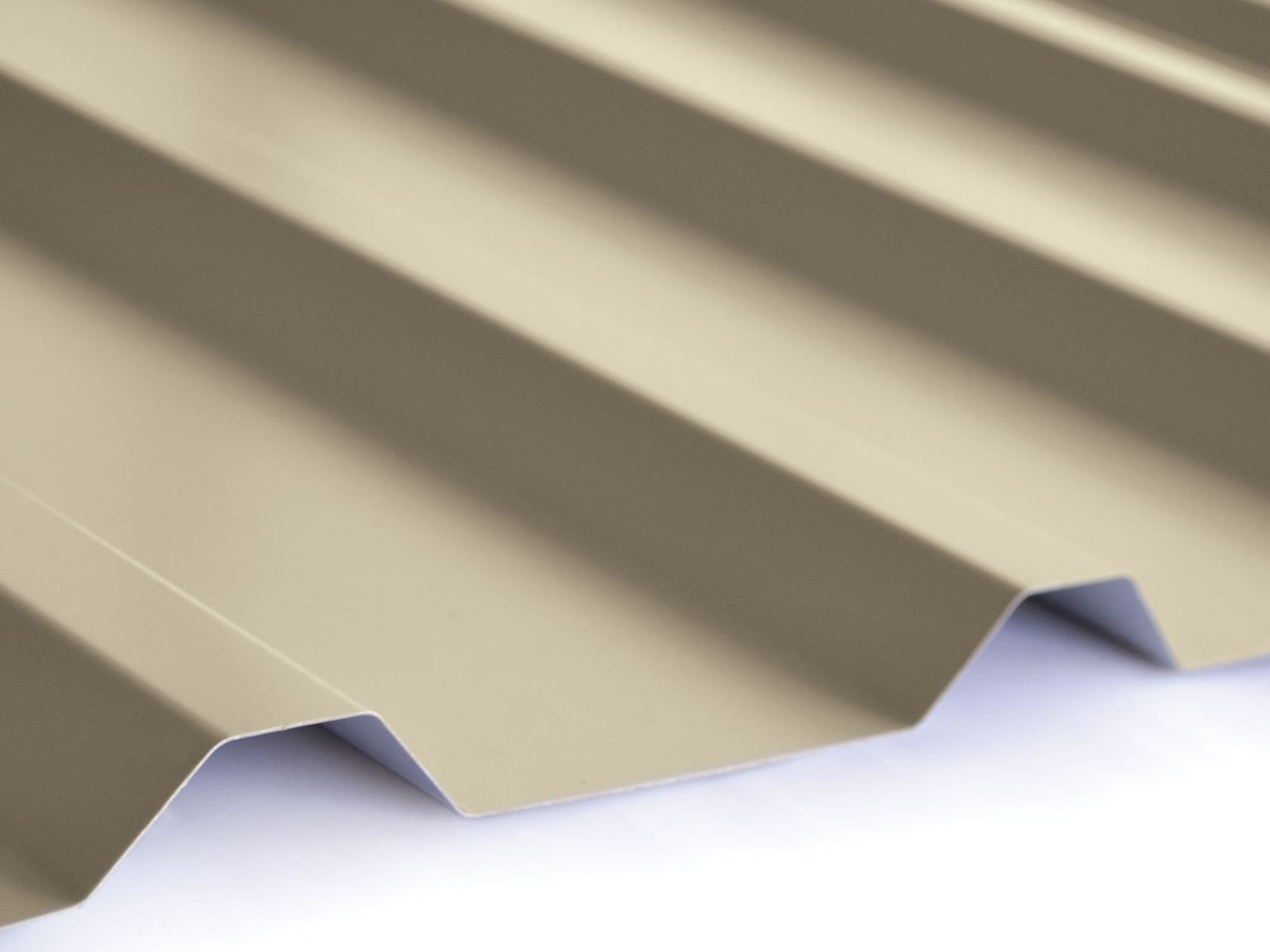

The M-Loc panel is similar to our R-Loc panel in gauge, strength and resistance to the most severe weather conditions with a rib style more suitable to smaller trims and buildings. This traditional commercial panel has long served customers with lasting durability in commercial-type applications.
- M-Loc is a structural roof and wall panel that can be installed directly over purlins or joists.
- Recommended for 1 : 12 or greater roof slopes
- Available in 26 gauge painted or 26 and 24 gauge acrylic Galvalume .specs-mloc

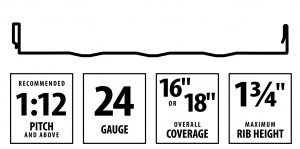

Every project looks beautiful with this easy to install panel.

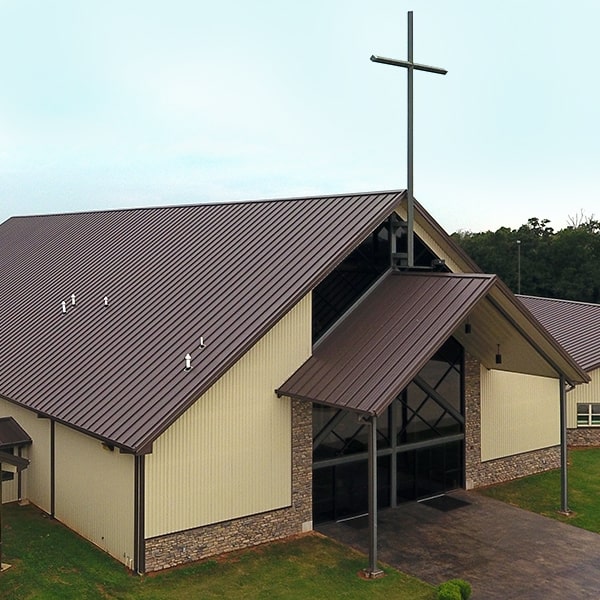

Central Snap has a modern 1 3/4 high snap-lock joint making it ideal for residential, light commercial and architectural applications. Central Snap is available in overall coverage widths of 16 or 18. It offers an architecturally pleasing look over solid decking.
- Snap-together panel, no field seaming required.
- Factory applied sealant insures a weather-tight and secure lap.
- Available with a 1 1/8" notch on either end of the panel for the ease of turning under; reducing installation labor and costs.

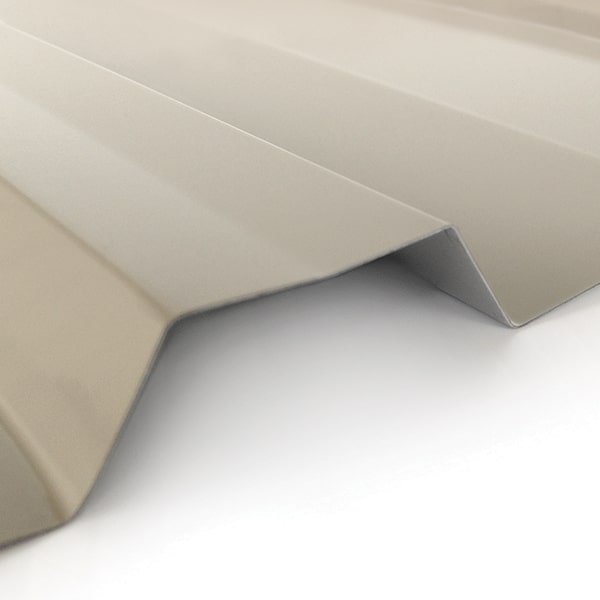

A traditional panel engineered to last for decades.
The board-and-batten appearance of CD 2000 provides an attractive and cost-effective option for a variety of residential, agricultural, and light commercial uses.
- Wide fastening surface for easy application.
- Employs a drain channel that minimizes leaks from wind, rain, and snow.
- Matching trims and accessories are available.

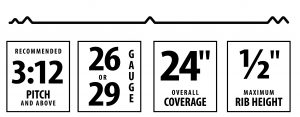

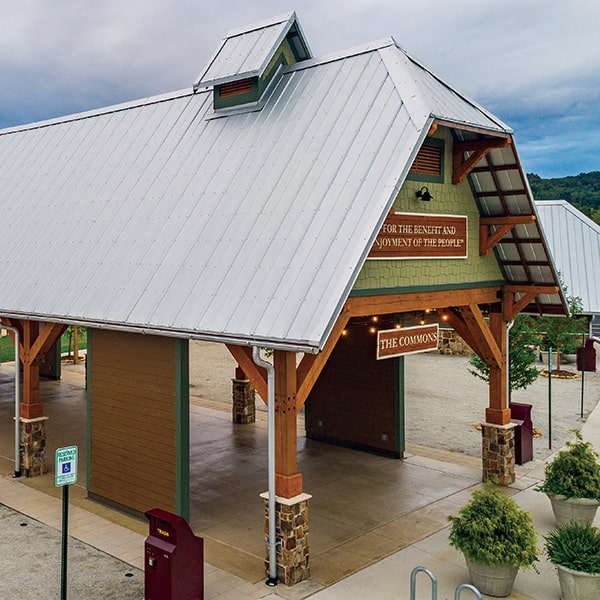

A proven favorite for historical districts.
This low-rib, exposed fastener panel is one of the oldest metal roofing profiles in the marketplace. 5V has a classic appearance and is especially popular in coastal areas, and available in bare galvanized or Galvalume .
- Galvalume - 26 ga. or 29 ga. bare with 25-year substrate warranty
- Galvanized G90 -29ga. bare
- Installs over a solid substrate.

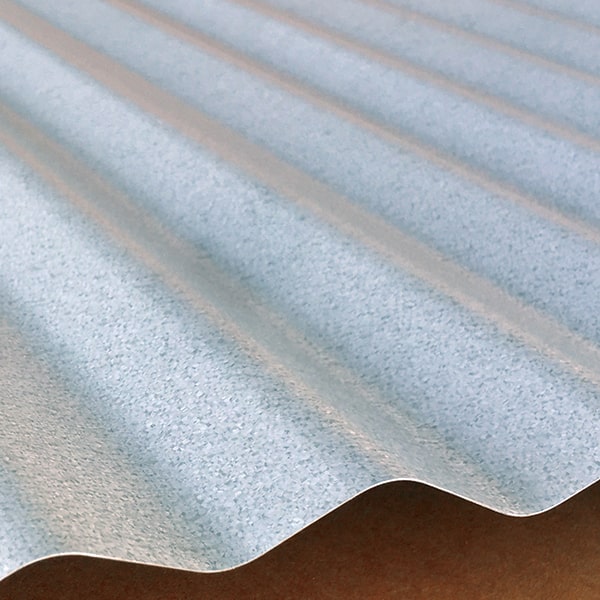

A traditional option designed for rustic applications.

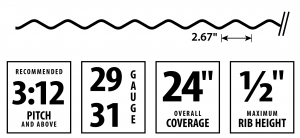

BarnMaster is the traditional metal panel for rustic applications. Its 2 1/2 profile is perfect for agricultural and interior projects.
- BarnMaster panels are available in minimum orders of 25. Only available in stock lengths between 6' and 20' in 2 foot increments.
- BarnMaster is available in Galvalume AZ55 acrylic bare with a 25-year perforation warranty, and Galvanized G90 and G30 acrylic bare.

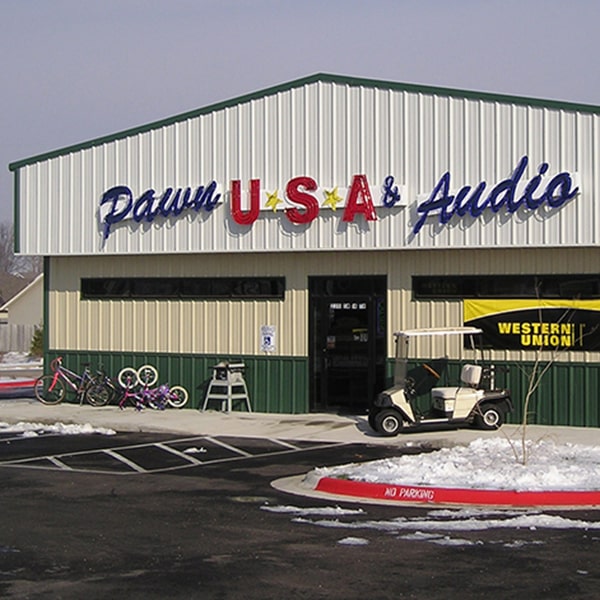

Commercial grade performance

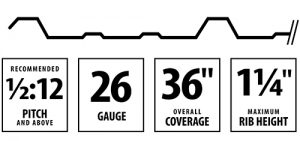

Commonly referred to as PBR-panel, this 26 gauge panel is an excellent choice for your projects that require commercial grade performance. R-Loc is designed to maximize the potential of your structures, specifically the steel frame. With an added purlin bearing leg, you can count on easier installation and a more pleasing appearance.
- Industry standard configuration allows maximum purlin spacing for cost-effective building.
- Recommended for 1/2 : 12 or greater roof slopes, and ideal for low pitch commercial roofs.
- Available in 26 gauge painted or 26 and 24 gauge acrylic Galvalume .

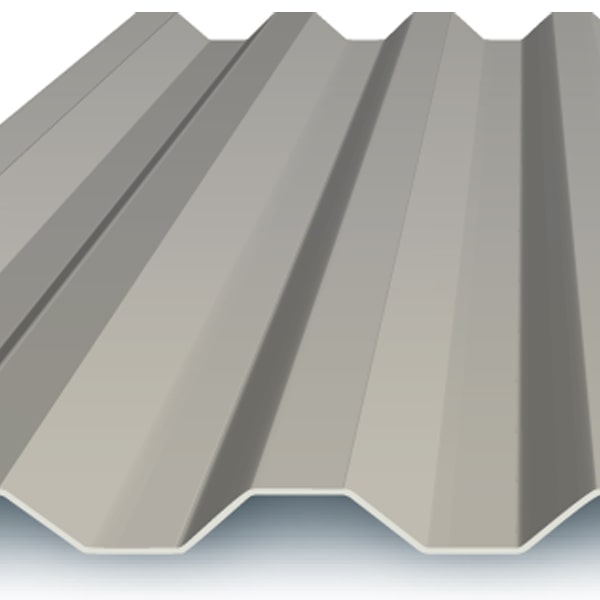

Symmetrical and strong for contemporary design.

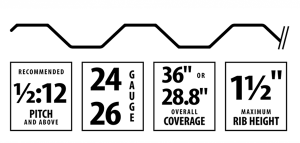

Available in 24 and 26 ga., our 7.2 panel is a great choice for both commercial and industrial applications. This exposed fastener panel can be installed horizontally or vertically. It's symmetrical, repeating pattern gives the classic deep-rib look that architects love, and is great for canopies and carports.
- Excellent load and spanning strength.
- Available in 36" and 28.8" coverage.
- Ideal for canopies, carports, and low-pitch commercial roofs.

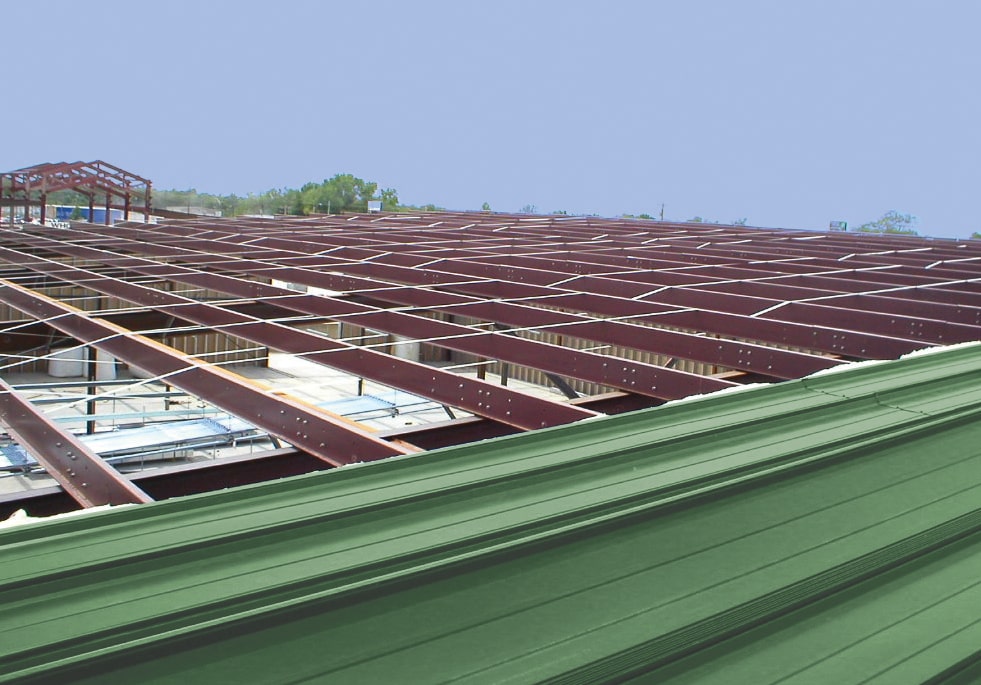

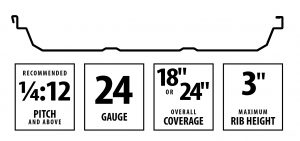

The best choice for commercial and industrial applications.
Central Seam Plus is a traditional mechanically seamed profile. This workhorse panel has been UL580 tested for uplift and passed both air and water infiltration ASTM tests.
- Floating clips allow for thermal roof expansion and contraction during extreme temperature changes.
- Pre-punched panels, combined with self-engaging backup plates for ease of installation.
- Reversible end-for-end panels so each side of the roof can be installed simultaneously.

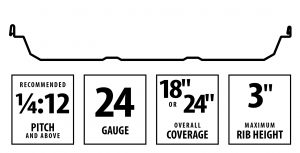

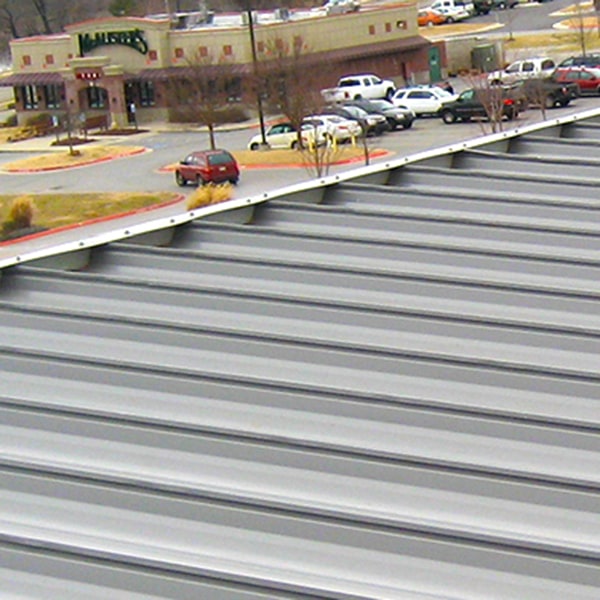

A 3" structural standing seam panel that snaps together.
Enjoy the benefits of an industrial grade 3 standing seam panel with the ease of a snap-lock joint. Central-Loc has been UL580 tested for uplift and has passed both air and water infiltration ASTM tests.
- Standing seam panels can be used for both new construction and retrofit.
- Pre-punched panels, combined with self-engaging backup plates for ease of installation.
- Comprehensive step-by-step erection manuals come with each Standing Seam order.

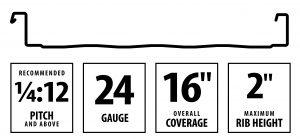

Preferred by architects for its superior protection from the elements.
Central Span meets the requirements for a wide range of roof slopes, shapes, loads, weather and related conditions. Many architects choose Central Span when spec'ing metal roofing for their projects.
- One of the highest uplift ratings in the industry.
- Factory applied sealant insures a weather-tight and secure lap.
- Clip provides a full 3" of thermal movement.

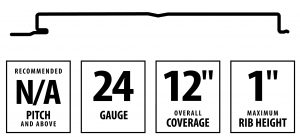

Designed to complement your building.

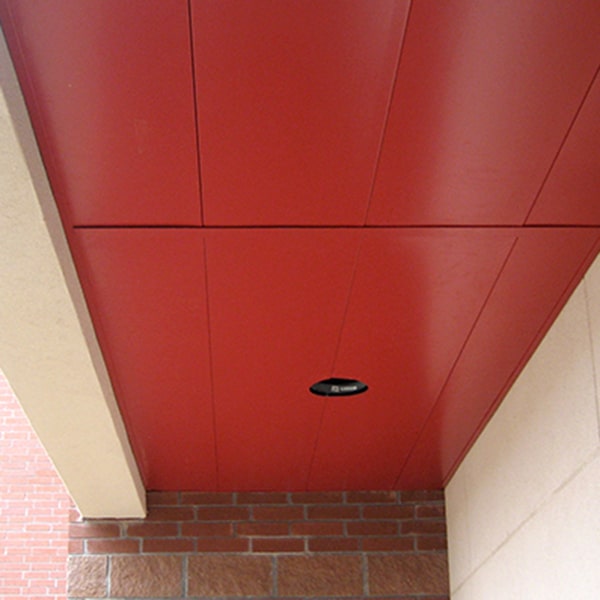

Our 12 width soffit and fascia panel offers flexibility in design. Precision-Loc is available in a solid or vented panel, with a flat appearing finish or with one stiffening groove.
- 4 options: choose solid or vented in either flat or with one "v" groove.
- Fastens directly to the sub-structure.
- 12" wide panel with interlocking seam.
- Min. length for solid panels is 6". Min. length for vented panels is 36".
